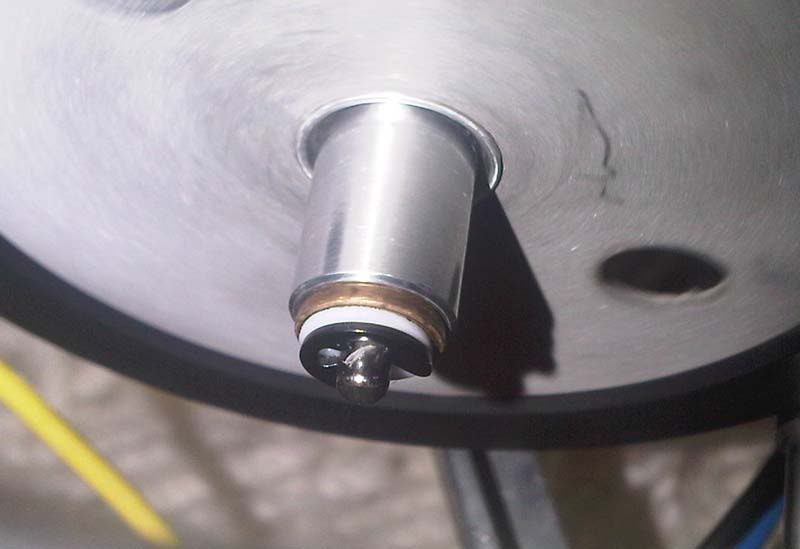

The idler wheel that I got with a flea market L78 was really noisy. At first I thought was the bronze bushing. It was probably run for a very long time without any lubrication at all, and I thought that the idler wheel is beyond repair. But it turned out that most of the noise is there because of the brown resin washers. They started making a sort of a very soft griding noise as soon as they weren't completely covered in oil. I had a sheet of 1mm PFTE lying around, and used a set of punches to make PFTE washers:  There's much less noise now, and also noticeably less vibration is transmitted down the idler arm. |
|
|
|
|
Logged
|
|
|
|
daiwok
Member
Offline
Age: 54
Location: HONG KONG
Posts: 7,557
|
|
« Reply #1 on: August 17, 2011, 10:22:00 AM » |
|
Great tweak ! - just made this a sticky !  |
|
|
|
|
Logged
|
David  Vinyl is BLACK MAGIC |
|
|
Johan
Member
Offline
Age: 64
Location: Helsingborg, Sweden
Posts: 1,119
|
|
« Reply #2 on: August 17, 2011, 10:22:17 AM » |
|
That's good!
I have been thinking of those brown washers myself as not having a too smooth surface.
The washer at the clip end also has one surface to the clip. The clip itself is not that good as a bearing surface. My washer seems to rotate with the idler wheel. My thought is that it should be better if it didn't do that.
|
|
|
|
|
Logged
|
Johan
WL70 - ΨAΘIN MS-12B - Icon Audio ST40 - Fostex FF125wk Fonkens
|
|
|
|
autobayer
Guest
|
|
« Reply #3 on: August 17, 2011, 10:31:22 AM » |
|
Hi Alexey. Great one. I use something else that I will post later - in fact I gave some to Jean, Hans, John in May  C |
|
|
|
|
Logged
|
|
|
|
daiwok
Member
Offline
Age: 54
Location: HONG KONG
Posts: 7,557
|
|
« Reply #4 on: August 17, 2011, 10:52:02 AM » |
|
damn that reminds me something Scott made for me a while back  |
|
|
|
|
Logged
|
David Vinyl is BLACK MAGIC |
|
|
|
autobayer
Guest
|
|
« Reply #5 on: August 17, 2011, 11:43:45 AM » |
|
Here we go: this one goes over the axis and has the same diameter than the idler wheel shaft:  |
|
|
|
|
Logged
|
|
|
|
the-stones
Member
Offline
Age: 36
Location: Hannover
Posts: 1,501
|
|
« Reply #6 on: August 17, 2011, 11:49:00 AM » |
|
Here we go: this one goes over the axis and has the same diameter than the idler wheel shaft:
I assume that's a bearing? Such a great idea... Do you have any left?  |
|
|
|
|
Logged
|
|
|
|
|
autobayer
Guest
|
|
« Reply #7 on: August 17, 2011, 11:57:05 AM » |
|
Haha,
thanks.
Give me your adress, I send you one.
Cheers
Chris
|
|
|
|
|
Logged
|
|
|
|
alexkorf
Member
Offline
Age: 54
Location: Vienna, Austria
Posts: 146
Alexey
|
|
« Reply #8 on: August 17, 2011, 12:47:38 PM » |
|
One side effect of using PFTE washers is that one can put the clip on much tighter than with resin washers. In my Mono Monster Lenco idler wheel's ability to move a little bit on the shaft caused some speed fluctuations (~0.1 rpm). With a wheel tightly clipped between the slippery washers the instability is gone.
I guess with a correctly aligned idler (mine's way off) the fluctuations wouldn't be there in the first place...
|
|
|
|
|
Logged
|
|
|
|
alexkorf
Member
Offline
Age: 54
Location: Vienna, Austria
Posts: 146
Alexey
|
|
« Reply #9 on: August 17, 2011, 12:53:30 PM » |
|
Hi Chris, Here we go: this one goes over the axis and has the same diameter than the idler wheel shaft:
At first I thought of something like this, but it looked like too much work... |
|
|
|
|
Logged
|
|
|
|
|
autobayer
Guest
|
|
« Reply #10 on: August 17, 2011, 01:09:45 PM » |
|
Alexey. I bought it  Cheers Chris |
|
|
|
|
Logged
|
|
|
|
happybadger76
Member
Offline
Age: 49
Location: leamington spa-west midlands
Posts: 482
John
|
|
« Reply #11 on: August 17, 2011, 03:09:49 PM » |
|
Chris, do you have any of those left? as atm i have a plastic idler wheel and its  bidding on a metal replacement atm |
|
|
|
|
Logged
|
Everyday is a winding road.
|
|
|
|
autobayer
Guest
|
|
« Reply #12 on: August 17, 2011, 03:32:25 PM » |
|
Mmmmh.
No, that was my spare one.
I bought a couple of them today.
But I could buy a whole lot for everybody and send them out step by step.
It´s a bit funny, since it only costs about 90 cents but maybe we could do that?
Cheers
Chris
|
|
|
|
|
Logged
|
|
|
|
daiwok
Member
Offline
Age: 54
Location: HONG KONG
Posts: 7,557
|
|
« Reply #13 on: August 17, 2011, 03:51:32 PM » |
|
Mmmmh.
No, that was my spare one.
I bought a couple of them today.
But I could buy a whole lot for everybody and send them out step by step.
It´s a bit funny, since it only costs about 90 cents but maybe we could do that?
Cheers
Chris
Now where is mine  |
|
|
|
|
Logged
|
David Vinyl is BLACK MAGIC |
|
|
|
tomatamot
Guest
|
|
« Reply #14 on: August 17, 2011, 04:42:15 PM » |
|
Now where is mine David have a look:  |
|
|
|
|
